Products

铝绞线及钢芯铝绞线系列
Aluminum Stranded Conductor & Aluminum Conductor Steel Reinforced

型号及名称 Type and Description


型号
Type

名称 Description

标称截面
Nominal cross section area mm2

型号说明
Type Description

LJ
(AAC)

铝绞线 Aluminum stranded conductor

10-1500

J-同心绞合 concentric stranding
F-防腐 corrosive proof
L-硬圆铝线(LY9型)hard round aluminum wire(LY9 type)
G-绞线用镀锌钢线(G1A型、G1B型、G2A型、G2B型,
其 中:1-普通强度,2-高强度,A-普通镀层厚度,B-加厚镀层厚度)
Letter G stands for Galvanized steel wire for stranding wire purpose
(G1A type, G1B type, G2A type, G2B type.
Among these types,
number 1 stands for common tension;
number 2 stands for high tension;
letter A stands for common coated layer thickness;
letter B stands for higher coated layer thickness.)

JG1A JG2A
JG3A JG1B

钢绞线
Steel stranded conductor

30-400

LHA1J
LHA2J
(AAAC
or AASC)

热处理铝镁硅合金绞线
heat treated, magnesium-silicon high strength aluminum alloy stranded conductor
热处理铝镁硅稀土合金绞线
heat treated,high strength magnesium-silicon rare earths aluminum alloy stranded conductor

100-1000
100-1000

JL/G1A JL/G2A JL/G1B JL/G2B JL/G3A
LGJ
LGJF
(ACSR)
(AACSR)
(ACAR)
(ACSS)
(TACSS)

钢芯铝绞线
Aluminum conductor steel reinforced
钢芯铝合金绞线
Aluminum Alloy Conductor Steel Reinforced
合金芯铝绞线
Aluminum Conductor Alloy Reinforced
钢芯软铝绞线
Aluminum Conductors Steel Supported
钢芯耐热铝合金绞线
Thermal Resistant Aluminium Alloy Steel-Reinforced Conductor

16/3-1250/100

JLB1A JLB1B JLB2

铝包钢绞线
Aluminum-clad steel stranded conductor

15-600
35-200

JL/LB1A
(ACSR/AS
or ACSR/AW)
(ACSS/AS
or ACSS/AW)

铝包钢芯铝绞线
Aluminum conductor aluminum-clad steel stranded reinforced
软铝包钢芯铝绞线
Aluminum Conductors –Aluminum Clad Steel Supported

15/3-1225/100

JL/G1AF JL/G2AF JL/G3AF
(Anticorrosive ACSR)

防腐钢芯铝绞线 Corrosion proof aluminum conductor steel reinforced

16/3-1250/100

产品标准 Standard of product
此产品是根据GB/T1179-2008圆线同心绞架空导线标准生产的,同时还可根据用户需要按国际电工委员会推荐的IEC标准、 英国标准、德国标准及美国标准生产
The product is manufactured according to the standard GB/T1179-2008,At the same time it can also be maunfactured according to IEC, BS, DIN and AEIC upon request of customers.

适用范围 Application
用于在架空电力线路中输送电能
Used for conveying electric energy in the overhead power line

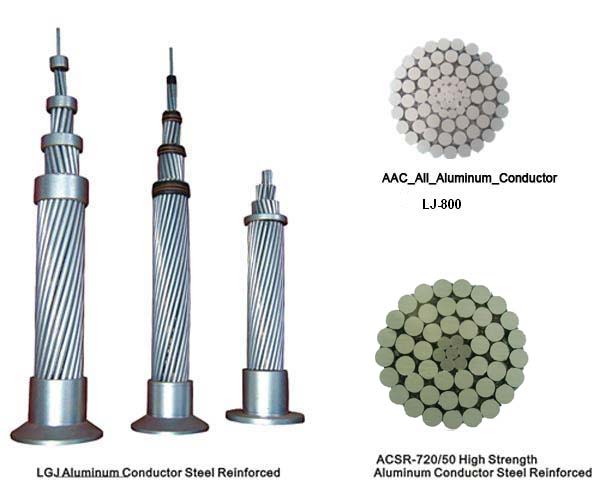

铝绞线及钢芯铝绞线结构图 Structure Drawing of Cable
